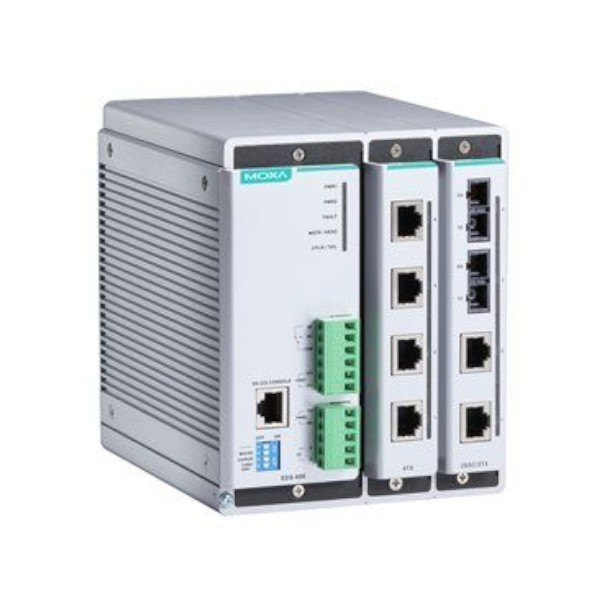

baza switcha zarządzalnego EDS-608-T, 8 portów Fast Ethernet, temperatura pracy od -40 do 75 °C
Przemysłowe switche zarządzalne na szynę DIN
| Standards |
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX/EZX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging EEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
| Protocols | IGMPv1/v2 device, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, LLDP, Modbus/TCP, IEEE 1588 PTP, IPv6 |
| MIB | MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Priority Queues | 4 |
| Max. Number of Available VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 256 |
| Fast Ethernet | 2 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX |
| Console | RS-232 (RJ45) |
| LED Indicators | PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, G1, G2, G3 |
| Alarm Contact | 1 relay output with current carrying capacity of 1A @ 24 VDC |
| Input Voltage | 12/24/48 VDC, redundant dual inputs |
| Input Current | 0.31 A @ 24 V |
| Connection | 1 removable 5-contact terminal block |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present |
| Housing | Metal, IP30 protection |
| Weight | 2080 g |
| Dimensions | 124.9 x 151 x 157.2 mm |
| Installation | DIN-Rail mounting, wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| EMI | FCC Part 15, EN61000-6-4 |
| EMS |
EN61000-6-2 EN61000-4-2 (ESD) EN61000-4-3 (RS), level 3 EN61000-4-4 (EFT), level 3 EN61000-4-5 (Surge), level 3 EN61000-4-6 (CS), level 3 EN61000-4-8 EN61000-4-11 EN61000-4-29 |
| Safety | UL508 (Pending), EN60950-1 (Pending) |
| Rail Traffic | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Maritime | DNV (Pending), GL (Pending), ABS (Pending), LR (Pending), NKK (Pending) |
| MTBF | 596,219 hrs hrs |
